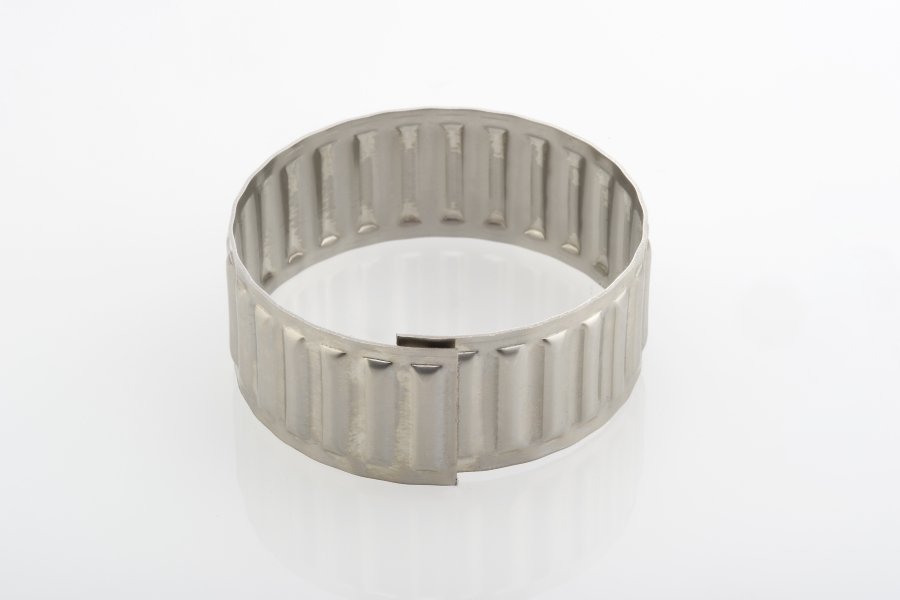

Tolerance ring - BN90-524
- Order number: BN90-524
- Do you have any questions concerning this product?
Features:
for unit bore (H9); Transmittable torque M [Nm]:850; Permissible radial load P [N]:22000
Do you need a CAD file? Request now.
request now
Features : for unit bore (H9); Transmittable torque M [Nm]:850; Permissible radial load P [N]:22000 ...
more
Tolerance ring - BN90-524
Features:
for unit bore (H9); Transmittable torque M [Nm]:850; Permissible radial load P [N]:22000
Economical
centering
vibration damping

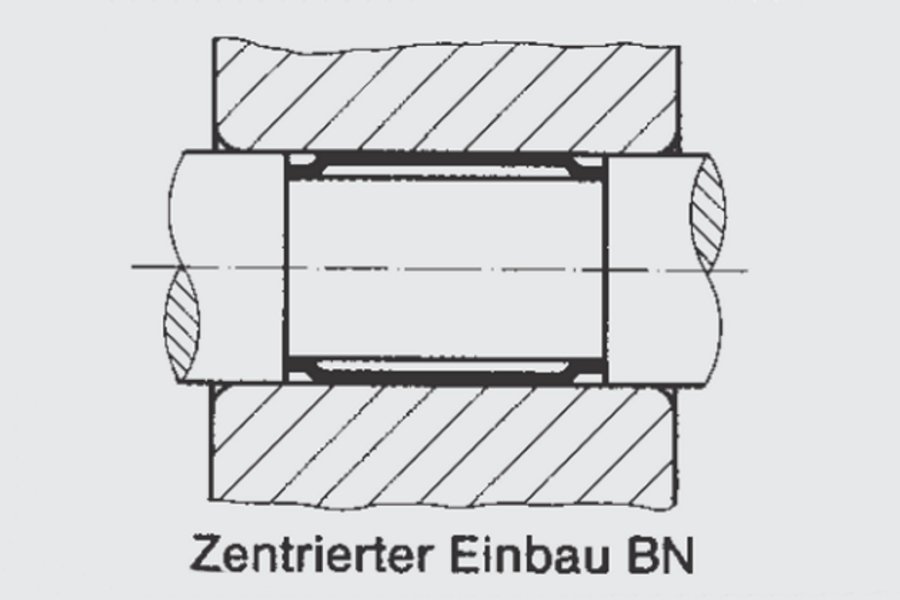

TH is fixed on the shaft and pressed into a unit bore (H9)
Technische Daten
| product group: | form-BN |
| typ/model: | BN |
| size (shaft-Ø): | 90 |
| seat width (b): | 24 |
| radial load (P) [N]: | 22000 |
| torque transmission (M) [Nm]: | 850 |
Datenblatt / Katalog
