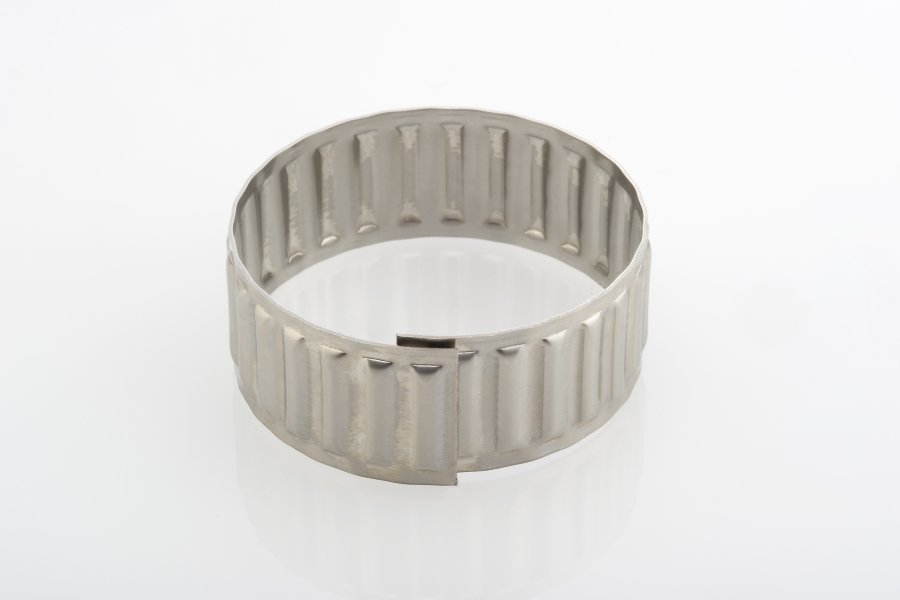

Tolerance ring - BN36-530

Features:
for unit bore (H9); Transmittable torque M [Nm]:135; Permissible Radial load P [N]:10300

Economical centering vibration damping

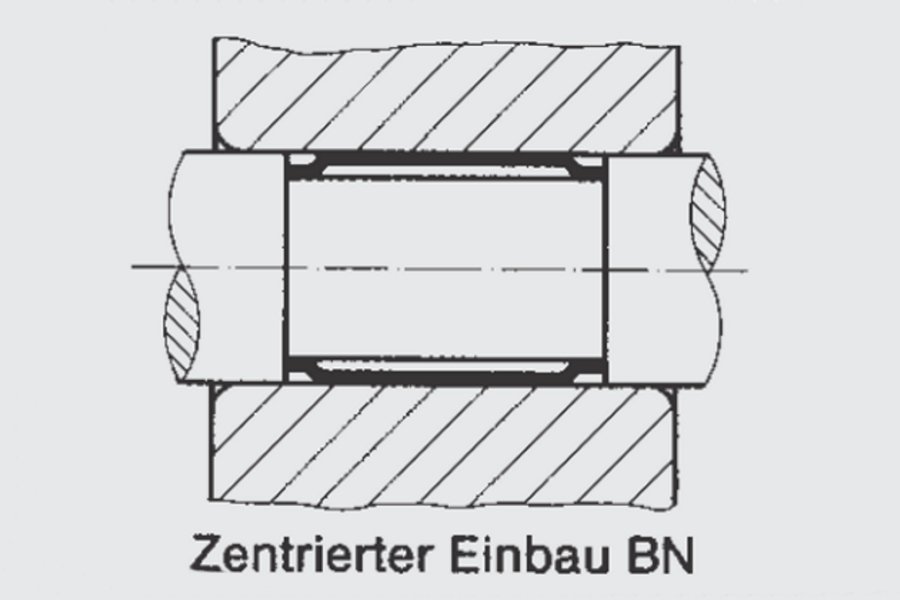

TH is fixed on the shaft and pressed into a unit bore (H9)

Technische Daten

product group: form-BN
typ/model: BN
size (shaft-Ø): 36
seat width (b): 30
radial load (P) [N]: 10300
torque transmission (M) [Nm]: 135
