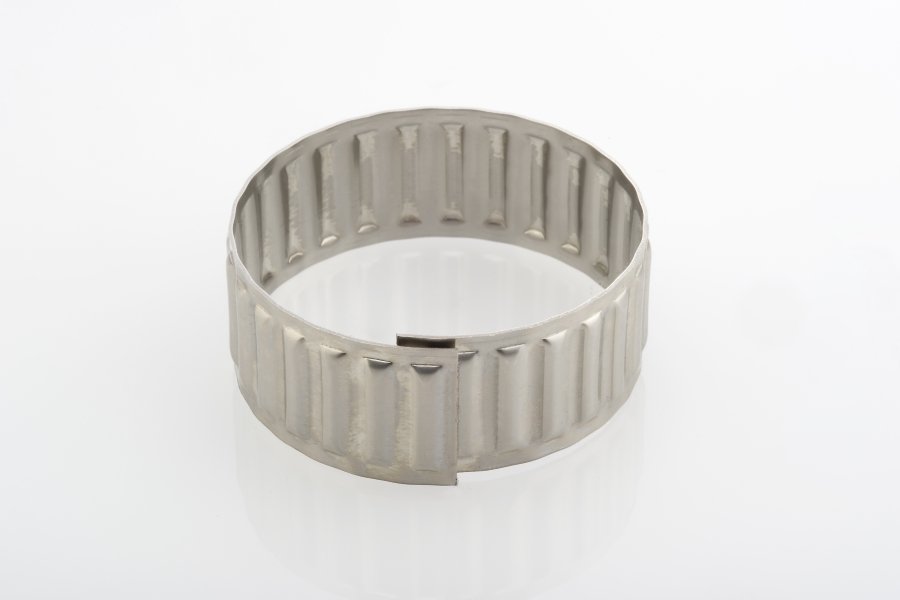

Tolerance ring - BN30-523
- Order number: BN30-523
- Do you have any questions concerning this product?
Features:
for unit bore (H9); Transmittable torque M [Nm]:70; Permissible
Radial load P [N]:12200
Do you need a CAD file? Request now.
request now
Features : for unit bore (H9); Transmittable torque M [Nm]:70; Permissible
Radial load P [N]:12200...
more
Tolerance ring - BN30-523
Features:
for unit bore (H9); Transmittable torque M [Nm]:70; Permissible
Radial load P [N]:12200
Economical
centering
vibration damping

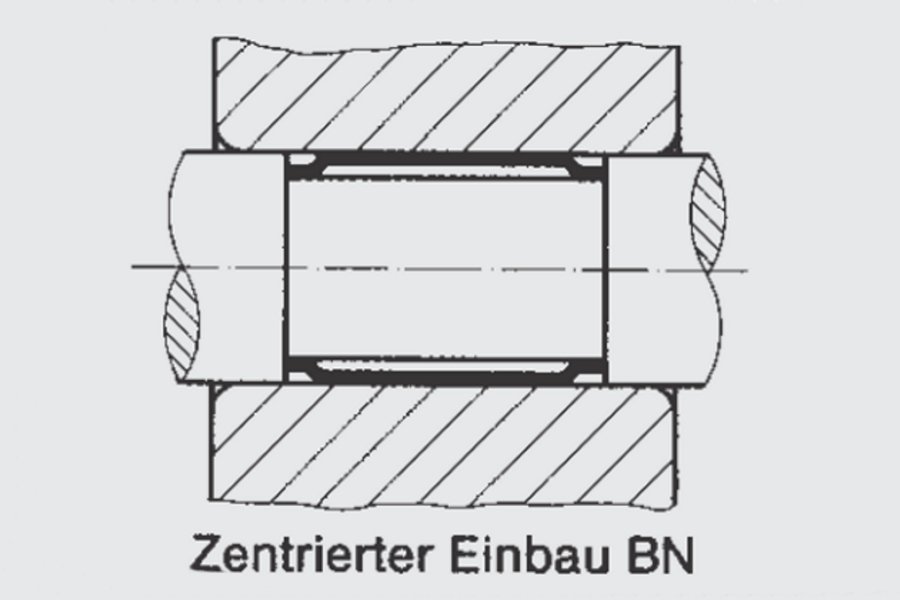

TH is fixed on the shaft and pressed into a unit bore (H9)
Technische Daten
| product group: | form-BN |
| typ/model: | BN |
| size (shaft-Ø): | 30 |
| seat width (b): | 23 |
| radial load (P) [N]: | 12200 |
| torque transmission (M) [Nm]: | 70 |
Datenblatt / Katalog
