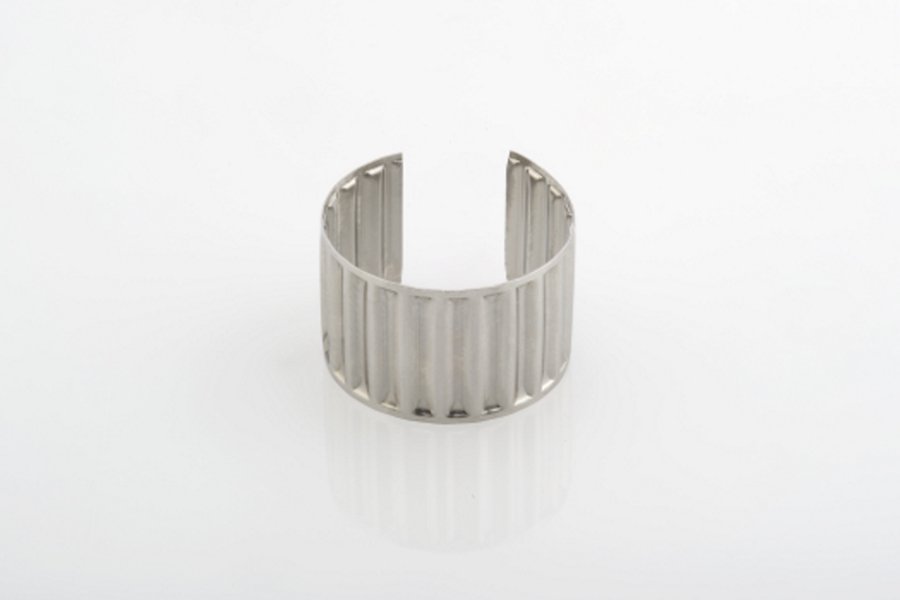

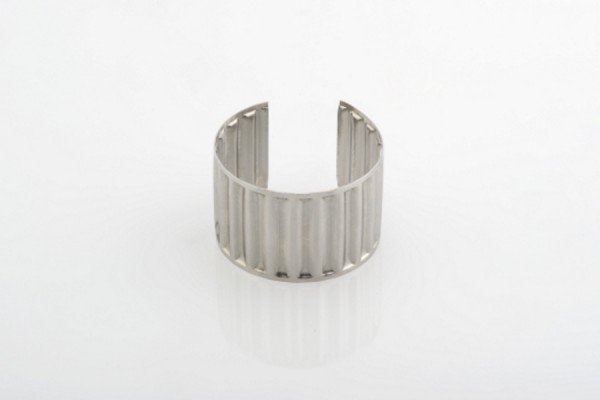

Tolerance ring - AN26-510

Features:
for standard shaft (h9); Transmittable torque M [Nm]:26; Permissible Radial load P [N]:4500


PDF Catalog

Inquiry support

Do you need a CAD file? Request now.

request now
Features : for standard shaft (h9); Transmittable torque M [Nm]:26; Permissible Radial load P [N]:4500... more

Tolerance ring - AN26-510

Features:
for standard shaft (h9); Transmittable torque M [Nm]:26; Permissible Radial load P [N]:4500

Economical centering vibration damping

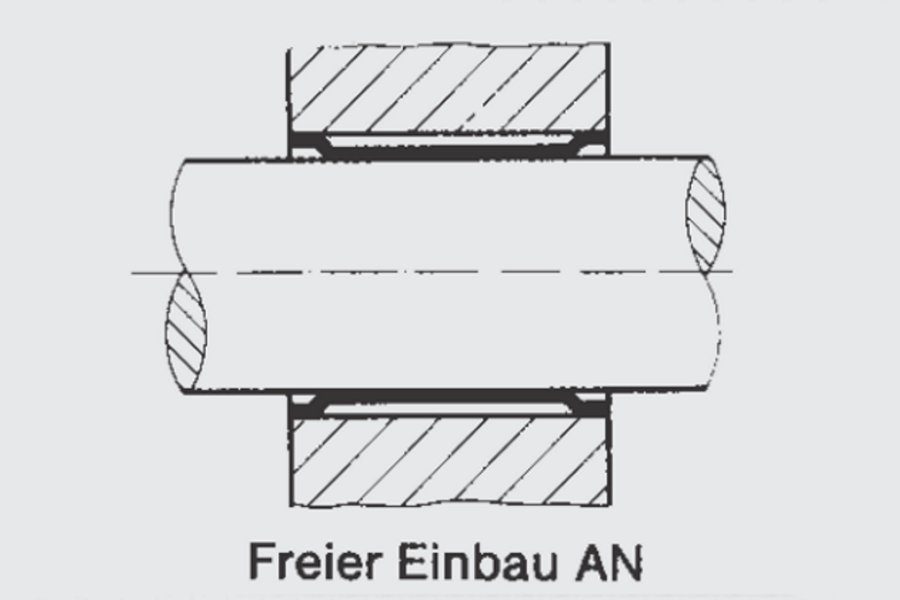

TH is fixed in the bore and pressed onto a unit shaft (h9)

Technische Daten

product group: form-AN
typ/model: AN
size (shaft-Ø): 26
seat width (b): 10
radial load (P) [N]: 4500
torque transmission (M) [Nm]: 26
