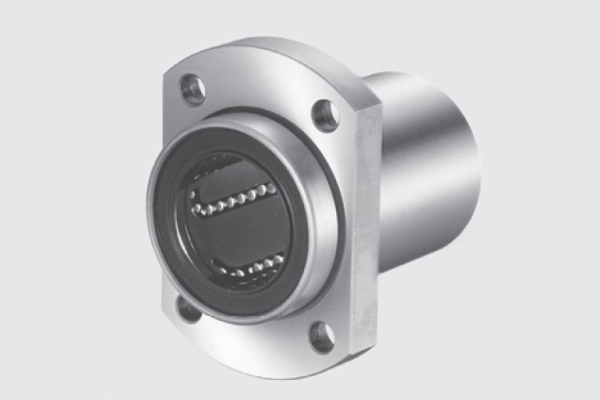

Sweep flange-## 0 ### - FK22-320
- Order number: FK22-320
- Do you have any questions concerning this product?
Features:
Sweeping flange-Ball Bushing; Equipped with plastic cage; with 2 scrapers; Size(Ø): 20
CAD model
Download CAD file:
1. Select a CAD format
2. Click on the green cube (grey cube - please configure the file via the yellow CAD button)
3. 3D preview is loaded and CAD file is generated
4. Please click on the download symbol to download the file
FK22-320
Sweep flange-## 0 ### - FK22-320
Features:
Sweeping flange-Ball Bushing; Equipped with plastic cage; with 2 wipers; Size(Ø): 20
High load capacity
Easy to install
OPTIONAL:stainless-steel
With the sweep flange-Ball Bushing of the FK series, we offer you a flange ball bushing for the reverse installation. The bore allows attachment to a mounting surface with the longer part of the Ball Bushing protruding away from the surface
For special cases, the sweep flange-Ball Bushing are also available up to size 30 in stainless [Designation FK22-5..].
Technische Daten
| product group: | linear ball bushings |
| product name: | ball bushing reverse flanged |
| typ/model: | FK |
| material: | steel/plastic, stainless steel |
| size (shaft-Ø): | 20 |
| lenght [mm]: | 42 |
| Außen-Ø (D): | 32 |
| load capacity C0 (static) [N]: | 1400 |
| design: | closed |
