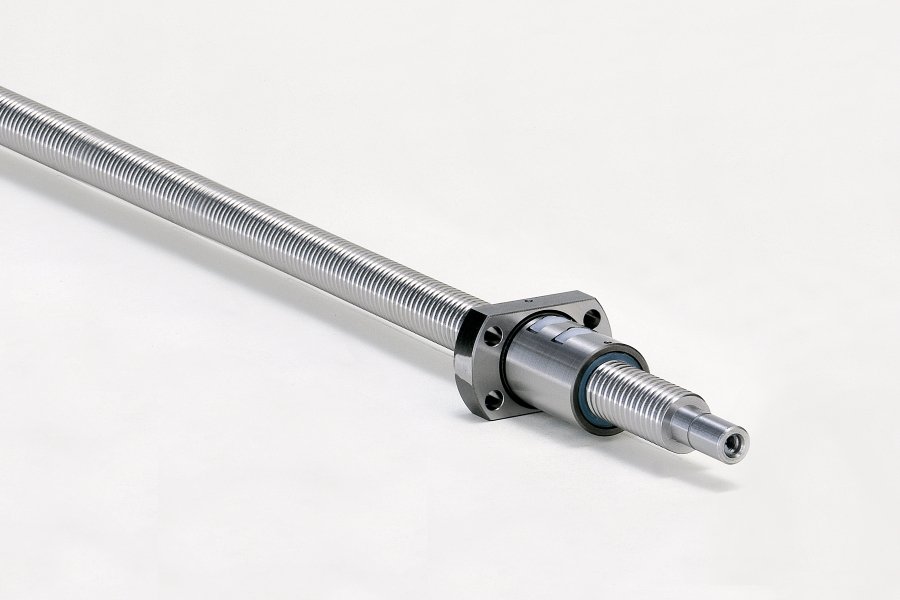

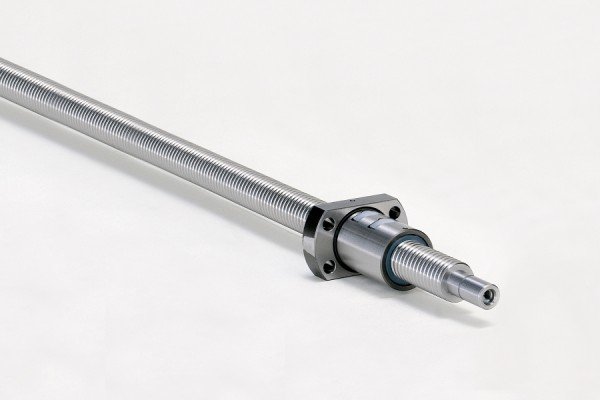

Ground threaded spindle - Ball Screw - PSS2005N1D0873
- Order number: PSS2005N1D0873
- Do you have any questions concerning this product?
Features:
Ball Screw with machined ends; accuracy class C5; size= 20 Ø x 5 pitch
CAD model
Download CAD file:
1. Select a CAD format
2. Click on the green cube (grey cube - please configure the file via the yellow CAD button)
3. 3D preview is loaded and CAD file is generated
4. Please click on the download symbol to download the file
PSS2005N1D0873
Ground threaded spindle - Ball Screw - PSS2005N1D0873
Features:
Ball Screw with machined ends; accuracy class C5; size= 20 Ø x 5 pitch
C5
Compact
free of play
Ground NSK-Ball Screw with compact backlash-free nut and new ball return system. Noise has been reduced by 6 dB and the outer diameters of nut are up to 30% smaller, allowing the design of much more compact units. The application possibilities of this Ball Screws are very versatile, as this series allows 1.6 times higher speeds.
Technische Daten
| nut type: | compact nut |
| accuracy class: | C5 |
| product group: | ball screws |
| product name: | ground ball screw |
| typ/model: | PSS |
| size (shaft-Ø): | 20 |
| load capacity C0 (static) [kN]: | 18,5 |
| leads: | 05 |
