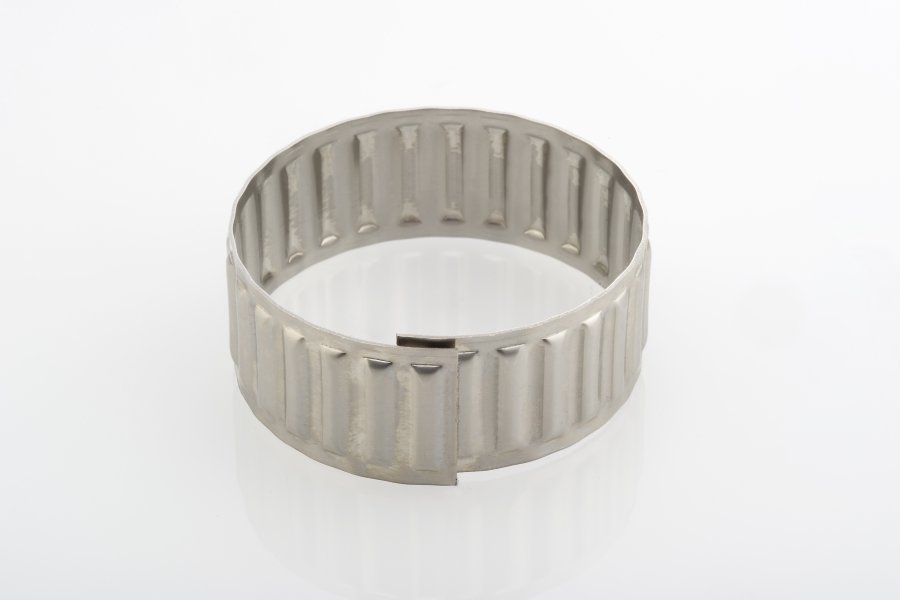

Tolerance ring - BN35-525

Features:
for unit bore (H9); Transmittable torque M [Nm]:110; Permissible Radial load P [N]:8650


PDF Catalog

Inquiry support

Do you need a CAD file? Request now.

request now
Features : for unit bore (H9); Transmittable torque M [Nm]:110; Permissible Radial load P [N]:8650... more

Tolerance ring - BN35-525

Features:
for unit bore (H9); Transmittable torque M [Nm]:110; Permissible Radial load P [N]:8650

Economical centering vibration damping

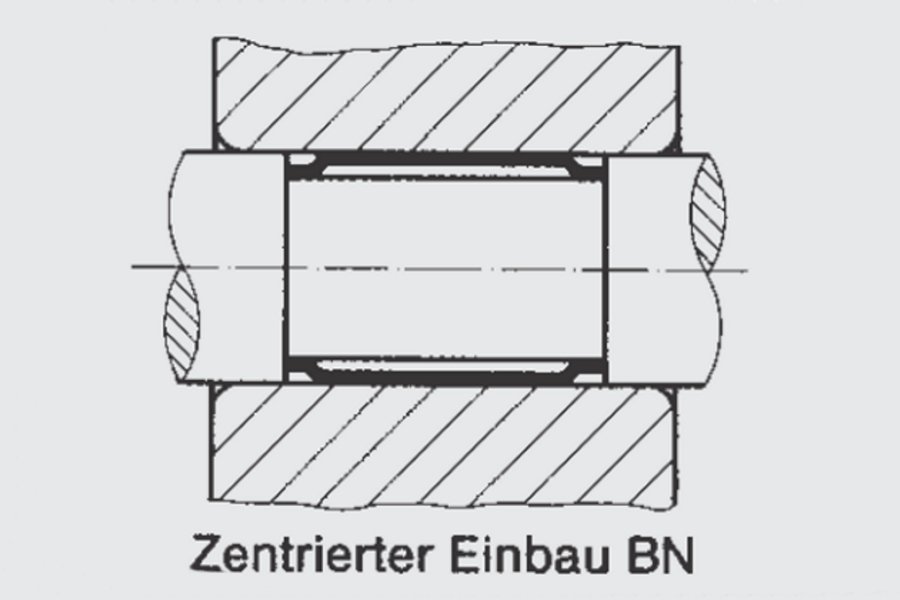

TH is fixed on the shaft and pressed into a unit bore (H9)

Technische Daten

product group: form-BN
typ/model: BN
size (shaft-Ø): 35
seat width (b): 25
radial load (P) [N]: 8650
torque transmission (M) [Nm]: 110
