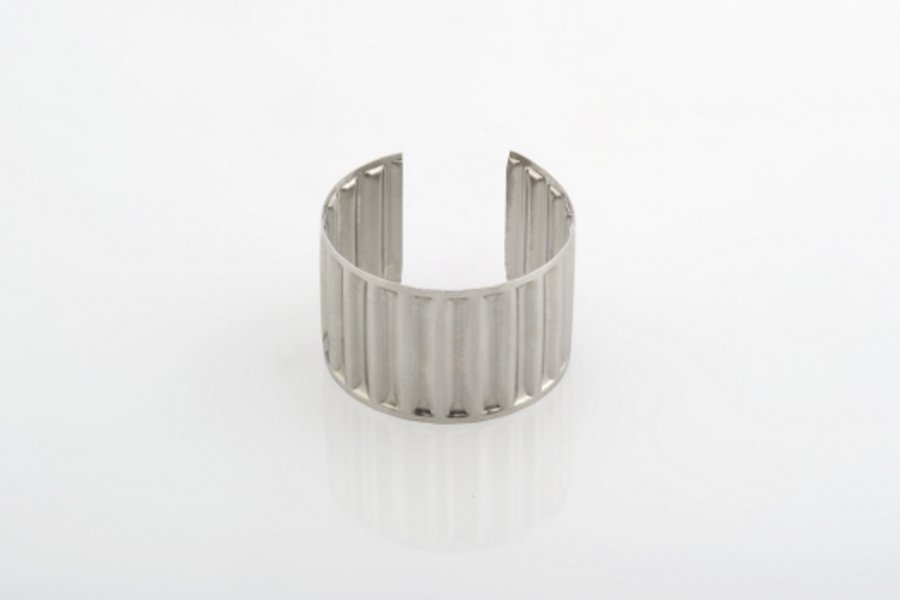

Tolerance ring - AN47-514
- Order number: AN47-514
- Do you have any questions concerning this product?
Features:
for standard shaft (h9); Transmittable torque M [Nm]:117; Permissible radial load P [N]:6230
Do you need a CAD file? Request now.
request now
Features : for standard shaft (h9); Transmittable torque M [Nm]:117; Permissible radial load P [N]:6230 ...
more

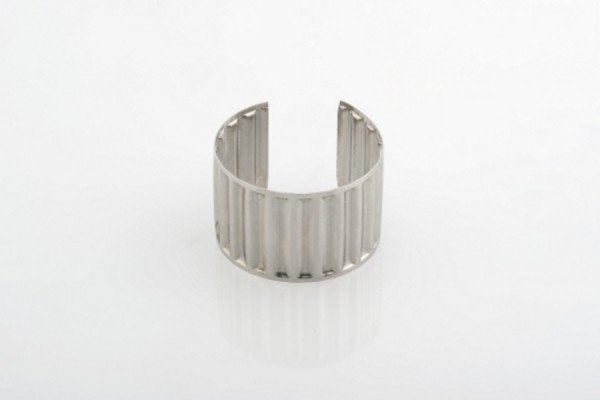

Tolerance ring - AN47-514
Features:
for unit shaft (h9); Transmittable torque M [Nm]:117; Permissible radial load P [N]:6230
Economical
centering
vibration damping

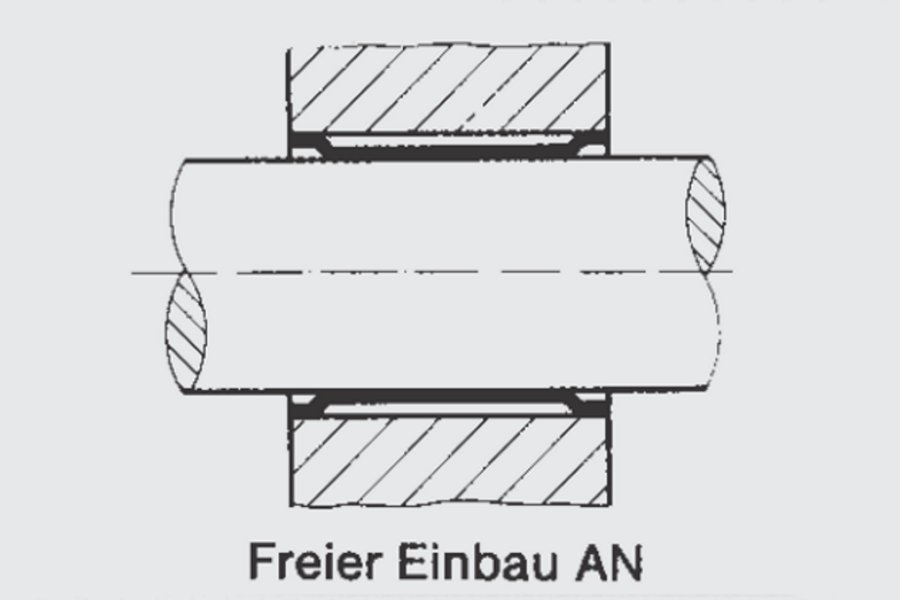

TH is fixed in the bore and pressed onto a unit shaft (h9)
Technische Daten
| product group: | form-AN |
| typ/model: | AN |
| size (shaft-Ø): | 47 |
| seat width (b): | 14 |
| radial load (P) [N]: | 6230 |
| torque transmission (M) [Nm]: | 117 |
