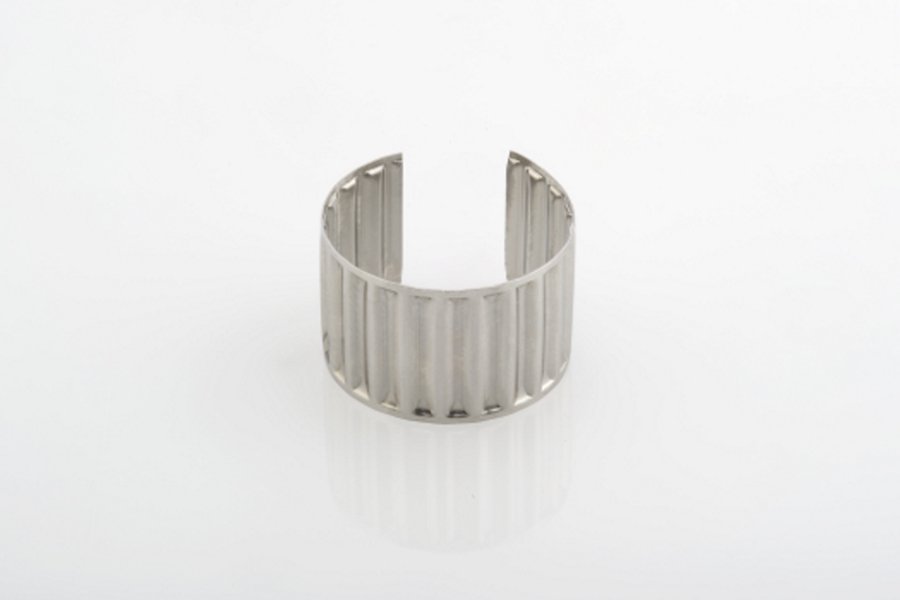

Tolerance ring - AN30-516
- Order number: AN30-516
- Do you have any questions concerning this product?
Features:
for standard shaft (h9); Transmittable torque M [Nm]:50; Permissible
Radial load P [N]:8065
Do you need a CAD file? Request now.
request now
Features : for standard shaft (h9); Transmittable torque M [Nm]:50; Permissible
Radial load P [N]:8065...
more

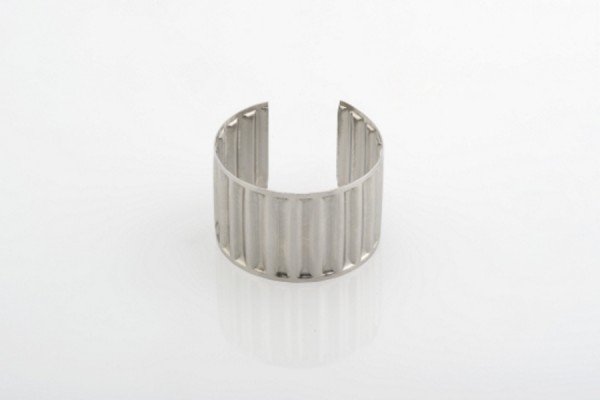

Tolerance ring - AN30-516
Features:
for standard shaft (h9); Transmittable torque M [Nm]:50; Permissible
Radial load P [N]:8065
Economical
centering
vibration damping
TH is fixed in the bore and pressed onto a unit shaft (h9)
Technische Daten
| product group: | form-AN |
| typ/model: | AN |
| size (shaft-Ø): | 30 |
| seat width (b): | 16 |
| radial load (P) [N]: | 8065 |
| torque transmission (M) [Nm]: | 50 |
