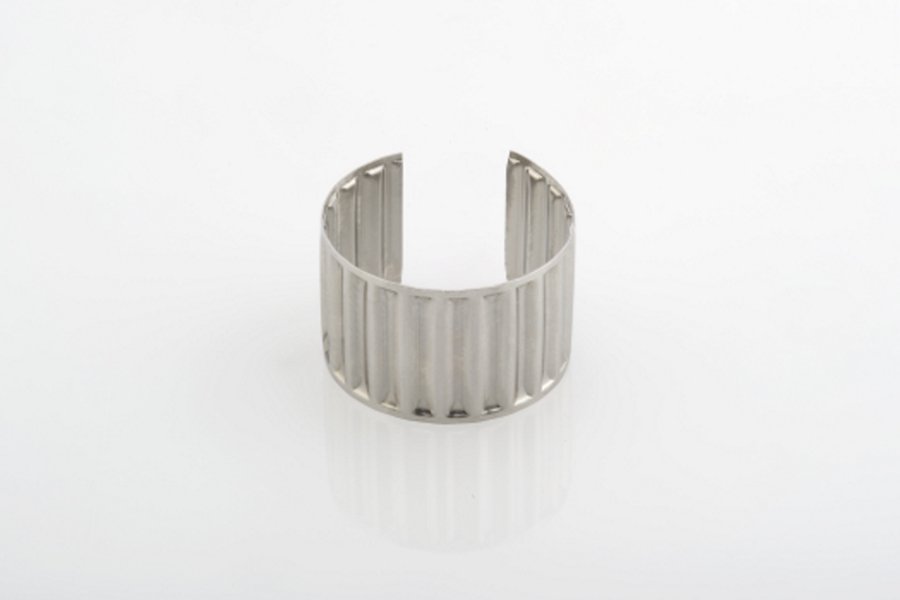

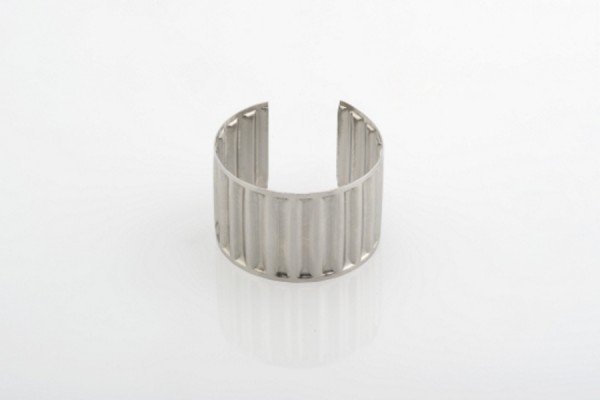

Tolerance ring - AN28-512
- Order number: AN28-512
- Do you have any questions concerning this product?
Features:
for standard shaft (h9); Transmittable torque M [Nm]:39; Permissible
Radial load P [N]:6250
Do you need a CAD file? Request now.
request now
Features : for standard shaft (h9); Transmittable torque M [Nm]:39; Permissible
Radial load P [N]:6250...
more
Tolerance ring - AN28-512
Features:
for standard shaft (h9); Transmittable torque M [Nm]:39; Permissible
Radial load P [N]:6250
Economical
centering
vibration damping

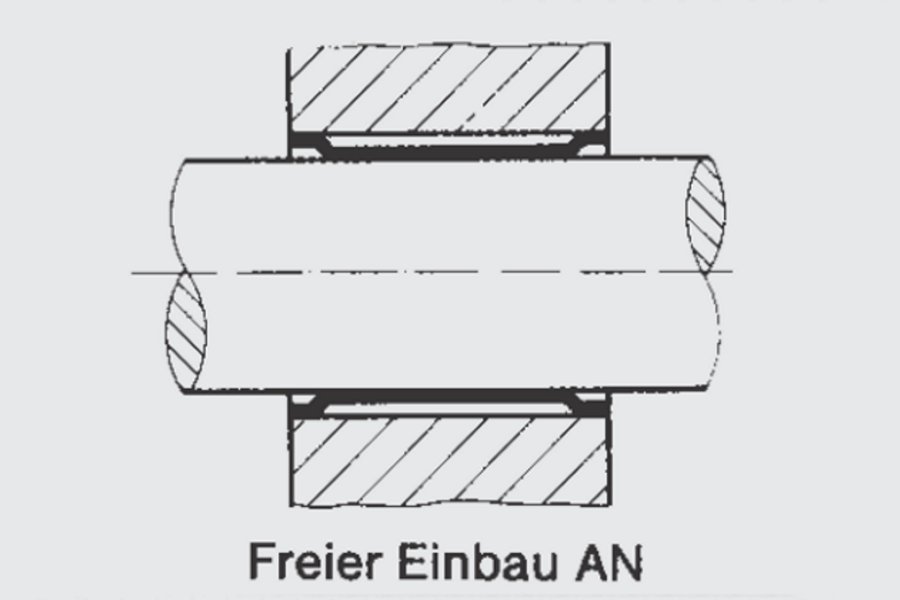

TH is fixed in the bore and pressed onto a unit shaft (h9)
Technische Daten
| product group: | form-AN |
| typ/model: | AN |
| size (shaft-Ø): | 28 |
| seat width (b): | 12 |
| radial load (P) [N]: | 6250 |
| torque transmission (M) [Nm]: | 39 |
Datenblatt / Katalog
