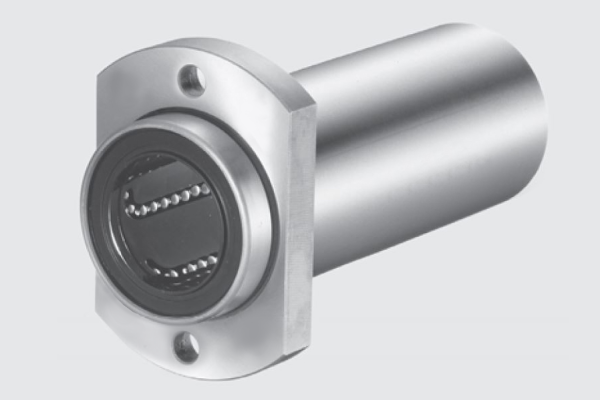

Sweep flange tandem ball bushing - FK42-306
- Order number: FK42-306
- Do you have any questions concerning this product?
Features:
Sweep flange tandem ball bushing; Equipped with plastic cage; With 2 wipers; Size(Ø): 06
CAD model
Download CAD file:
1. Select a CAD format
2. Click on the green cube (grey cube - please configure the file via the yellow CAD button)
3. 3D preview is loaded and CAD file is generated
4. Please click on the download symbol to download the file
FK42-306
Sweep flange tandem ball bushing - FK42-306
Features:
Sweep flange tandem ball bushing; Equipped with plastic cage; With 2 wipers; Size(Ø): 06
High load capacity
Easy to install
OPTIONAL:stainless-steel
The FK series sweep flange tandem ball bushing is a flanged tandem ball bushing for reverse installation. The bore allows attachment to a mounting surface with the longer part of the Ball Bushing protruding away from the surface
For special cases, the sweep flange tandem ball bushings are also available up to size 30 in stainless [designation FK42-5..].
Technische Daten
| product group: | linear ball bushings |
| product name: | ball bushing reverse flanged |
| typ/model: | FK |
| material: | steel/plastic, stainless steel |
| size (shaft-Ø): | 06 |
| lenght [mm]: | 35 |
| Außen-Ø (D): | 12 |
| load capacity C0 (static) [N]: | 530 |
| design: | closed |
